Lime Kiln
Lime rotary kiln has many advantages in the calcination of lime, it is also known as the lime kiln, and is a professional, strong calcining equipment, Its main advantages include great production capacity, no noise, low energy consumption, and so on.
Applications:
mainly apply for lime production line.
Capacity: 50-1200t/d
Performance Advantages
the main drive system adopts a new type of AC frequency conversion speed regulation technology. Compared with traditional electromagnetic speed regulation and DC speed regulation, it is more energy-saving and environmental protection and has a wide range of speed regulation, high efficiency, and high-speed regulation precision, and stable operation.
After welding the base of the supporting device of the supporting wheel and the retaining wheel, and eliminating the welding stress through vibration aging treatment, integrated processing and manufacturing can be carried out by using a large vertical lathe and boring and milling machine, which can guarantee the machining accuracy and shape and position tolerance requirements of each part and significantly improve the installation accuracy and reliability of the whole machine.
According to the characteristics of limestone and its’ calcination process requirements, the overall structure optimization design was carried out for kiln head and end sections, which solved the problems of return materials of kiln tail and dust leakage commonly existed in common rotary kilns, making the transportation more smooth and natural.
The limestone is uniform in heat, stable in product quality, low in over-burnt rate, especially suitable for calcination of high activity lime for steelmaking.

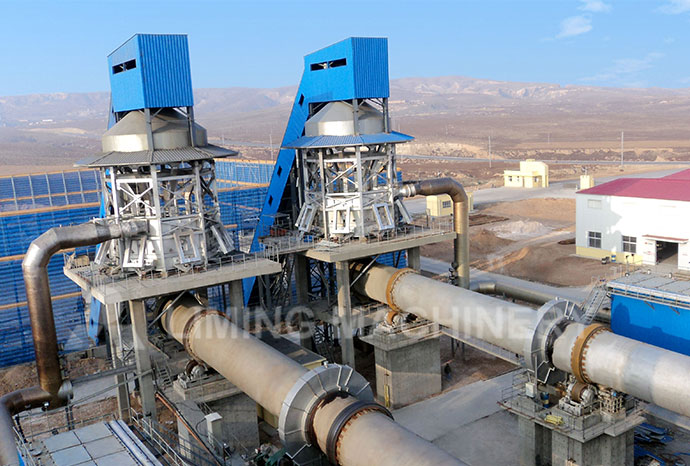

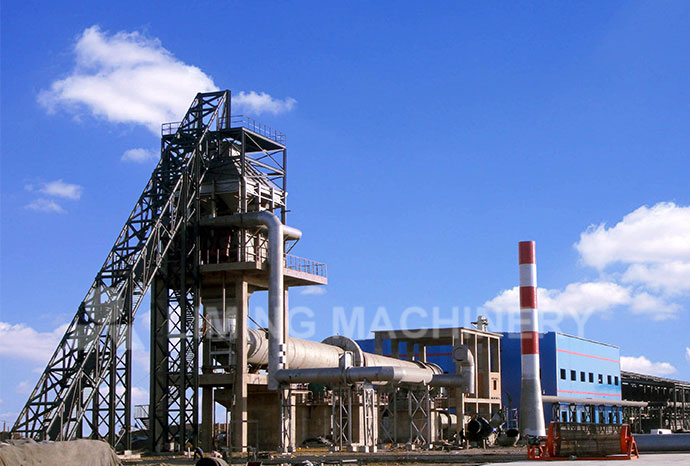

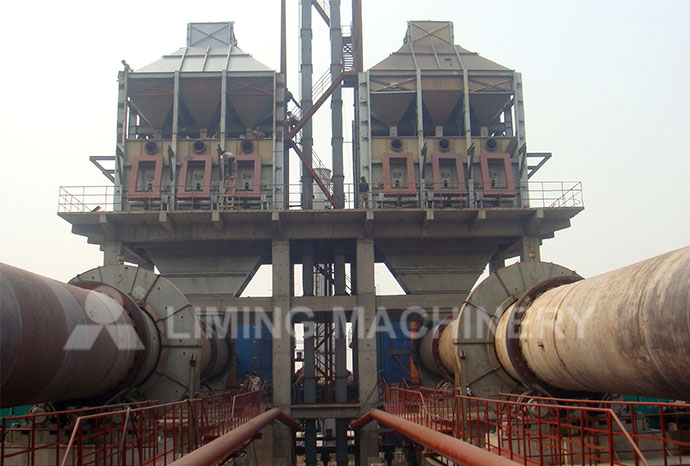

vertical preheater can be configured at the end of the kiln to make full use of the high-temperature flue gas calcined in the lime rotary kiln, preheat the limestone from normal temperature to the initial decomposition state, improve the product activity, and facilitate transportation and storage.
Working Principle
Limestone is fed into the kiln through the chute at the end of the kiln. Due to the tilt and slow rotation of the kiln body, the limestone rolls along the circumference on one side and moves from the end of the kiln to the kiln head on the other side along the axis. The fuel is sprayed into the kiln from the end of the kiln through the burner for combustion, and the heat is transmitted to the limestone by radiation, convection and conduction. After the limestone is calcined into quicklime during the moving process, it is discharged from the end of the kiln, and the high-temperature flue gas enters the dust removal system from the end of the kiln.
Specifications
Hot Sale: patented technology, high productivity, environmental protection and energy saving
FAQ
What transmission method does the MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill use?
The MTW6X Fully Thin-Oil Lubricated Intelligent European Grinding Mill adopts the bevel-gear integral drive inherited from the European mill series. The main motor drives the central shaft via a reducer, giving a shorter chain and more precise ratio with
How is the Ball Mill applied in cement grinding?
In cement plants the Ball Mill grinds raw meal and cement (clinker plus additives), often with a roller press pre-crusher and analyzer in a combined grinding system. Closed-circuit operation stabilizes specific surface area for different cement grades—
What is the working principle of rotary dryer?
Well‑arranged, alternately‑angled lifters inside rotating drum repeatedly lift and shower wet materials to form material curtain. Hot airflow contacts materials fully and evaporates moisture into steam exhausted out. With drum gradient, materials move slowly from feeding end to discharging end. Rotate speed, inflow temperature and gradient adjust material residence time for target outlet moisture.
What function does vertical preheater play in rotary lime kiln system?
Vertical preheater is installed at kiln tail to recover waste heat from hot kiln flue gas. It heats normal‑temperature limestone close to decomposition point. Partial carbonate decomposes in advance to reduce calcination load, cut fuel consumption and improve lime activity. Circular and polygonal types are available for different capacity grades. Preheater specification must match kiln capacity, flue‑gas temperature and flow to keep stable thermal condition for energy‑saving lime lines.
Can the MW ring‑roller micro‑powder mill realize automatic operation?
Equipped with intelligent electric control cabinet, it realizes automatic control over feeding, grinding, classification and collection. It supports connection to upper‑level central‑control system for remote parameter monitoring and fault alarm disp
Does C6X jaw crusher suit wet‑crushing or dry‑crushing processes?
C6X is mainly designed for dry crushing and widely used for primary crushing in aggregate mines. Limited water‑spray dust suppression is allowed, yet heavy wet submerged crushing is not recommended. Mass mud and water entering bearings and hinge points
