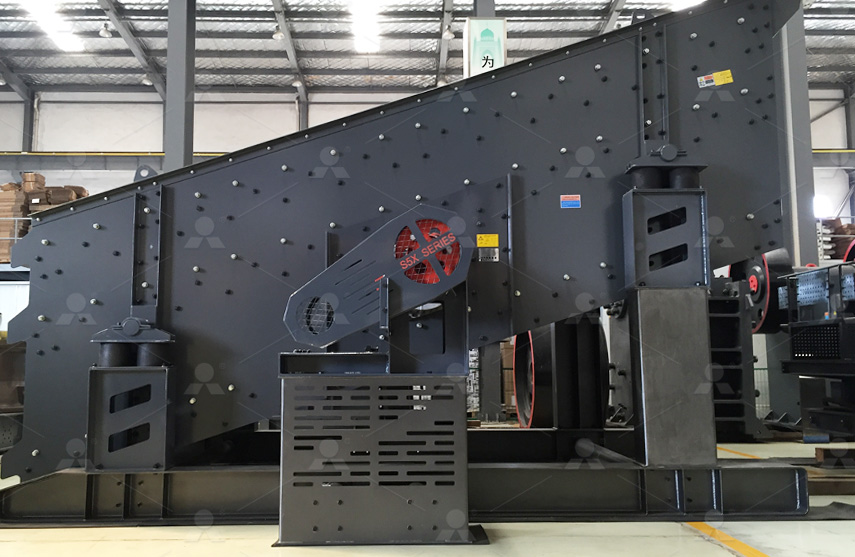

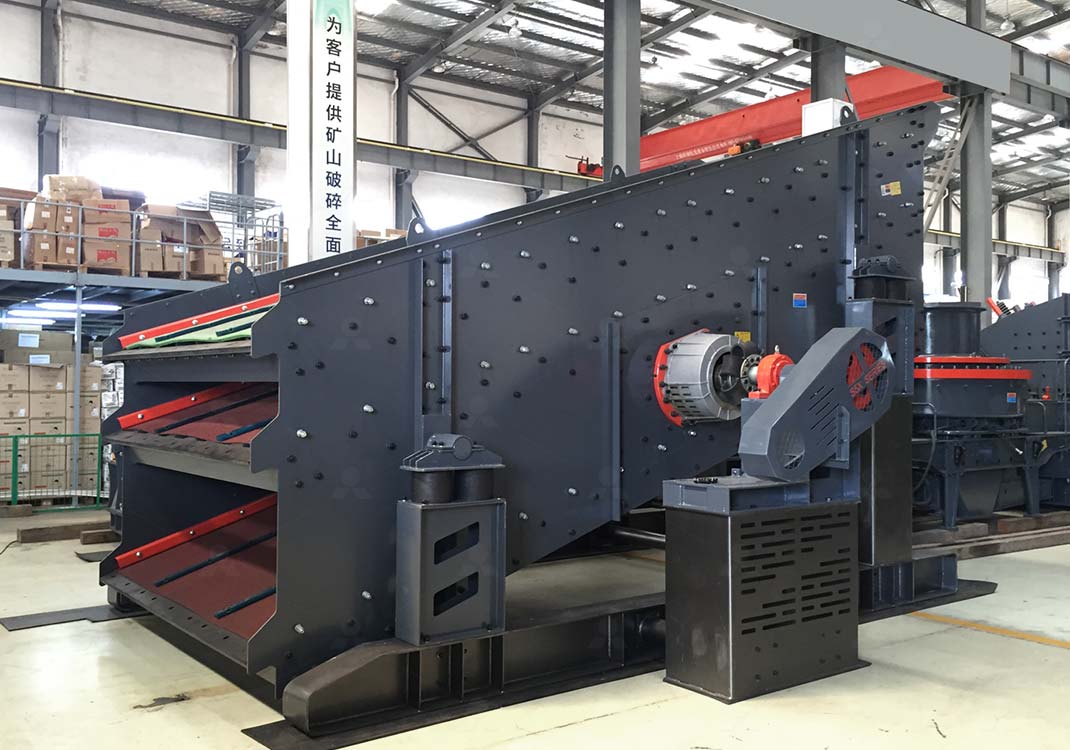

S5X Series Vibrating Screen
S5X Series Vibrating Screen is new equipment made in Liming Heavy Industry, and it is particularly suitable for heavy type, medium type and fine type, etc. screening work. This machine adopts SV Hyper-Energy Exciter, which makes screening efficiency improved.
SV Hyper-Energy Exciter, G-force
Applications:
Construction aggregates, metal mining, coal mining, chemical engineering, material recycling and etc.
Performance Advantages
Since the screen adopts latest advanced design concept and manufacturing technique, it has enhanced vibrating strength G-force. It owns high throughout capacity, and more efficient screening capability.
The SV Hyper-Energy Exciter is standard configuration for S5X series vibrating screen, and it has high efficiency and solid reliability. SV1-SV4 four models of exciter, to adjust the quantity of balancing weight, apply to all kinds of vibrating screen’s different excitation force requirement. The spare parts of screen are swappable, universal, standard, and modular.
The screen frame adopts finite element analysis, enabled the design intensity, weight balance and fatigue stress control in a safety margin.
Driving motor and exciter adopts flexible drive, makes the operation smooth and stable.
The screen side frame is without any form of welding point, and the support seat adopts rubber spring. 400mm long feeding chute, 25mm thick rubber plate, and 5mm beam protection wrapper sheet, these component ensured the screen has extra-long service life.
Working Principle
S5X vibrating screen is mainly composed of screen box, spring support groups, bearing, vibrators, transmission, motor, transmission bearings and other components. S5X vibrating screen is a machine supported by springs , block eccentric vibration as the exciter source and generated excitation force by the rotation of the eccentric , So that the screen box circumferential consequent reciprocation. The material on the inclined sieve surface successive approximation in round bouncing tumbling motion, by repeatedly comparing with mesh, smaller than the mesh size of the material through the sieve, larger than the screen hole size of materials still on the screen mesh, thereby completing the screening process.
Specifications
Hot Sale: patented technology, high productivity, environmental protection and energy saving
FAQ
What is process positioning of S5X circular vibrating screen in crushing lines?
S5X circular vibrating screen is high‑performance circular‑motion screen for material classification, closed‑circuit return and pre‑screening. It separates crushed material into multiple finished fractions; oversize particles return to crusher fo
What are main differences between circular‑motion S5X screen and linear vibrating screen?
S5X features circular‑motion trajectory. Screen box moves in quasi‑circular orbit to throw material upward‑forward for high screening efficiency for medium‑coarse aggregate. Linear screen performs reciprocating straight‑line motion and suits sa
How many screen decks does S5X circular vibrating screen support and what functions do they realize?
S5X circular vibrating screen can be equipped with 1‑4 screen decks; deck quantity determines number of finished fractions. Single deck is for simple pre‑screening to remove large impurities. Two decks produce three material fractions. Three decks ou
What negative impacts are brought by large feed drop height for S5X circular vibrating screen and how to mitigate them?
Excessive drop height from crusher causes violent material impact, accelerating mesh cracking and local fatigue damage of screen box. One‑sided impact leads to uneven material distribution, reduces screening efficiency and raises noise level. Install b
How to adjust deck inclination angle of S5X circular vibrating screen and what production changes will it bring?
Deck inclination angle of S5X screen is adjusted by modifying height of support spring seats, typical operating range 12‑20°. Larger angle accelerates material travelling speed and raises throughput yet shortens retention time and reduces classificati
What function do support springs perform for S5X circular vibrating screen and what faults occur upon spring failure?
Support springs bear full excitation load and isolate vibration transfer to frame and foundation to guarantee normal circular orbit motion of screen box. S5X uses high‑toughness coil springs. Spring fracture, plastic deformation or stiffness decay caus
