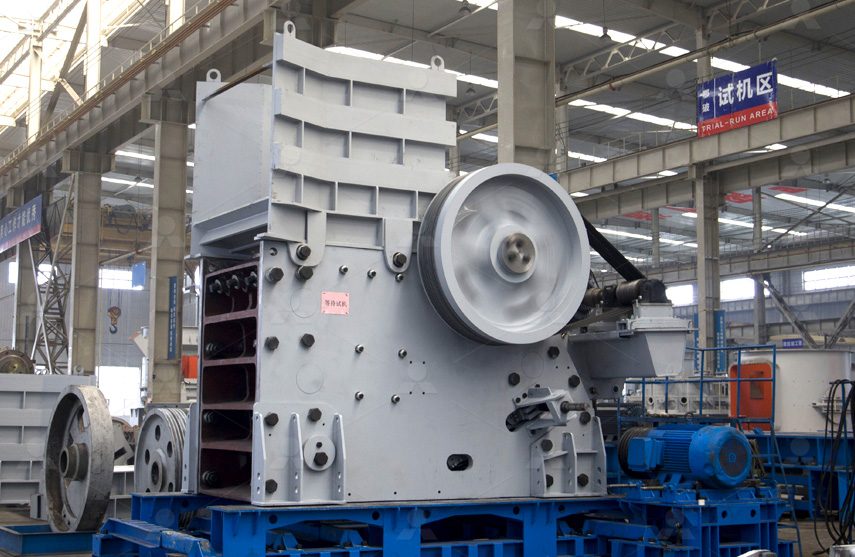

C6X Jaw Crusher is new equipment used for crushing hard or abrasiveness stones. It is possess of detachable frame without welding structure, double wedge adjusting device, elastic limit damping device and integrated motor seat, which will make C6X Series Jaw Crusher popular in the market.
Double wedge adjusting device, Elastic limit damping device
Applications:
Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.
Capacity: 20-800T/H
Input size: 20-40mm
Working Principle
Input dynamic by motor, the pulley drives eccentric shaft to make the movable jaw move upwards and downwards with SPC belt. When the movable jaw moves forth toward the fixed jaw, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which met the requirements will be discharged from the outlet. Since the motor keeps working, the crusher will crush and discharge periodically to achieve mass production.
Specifications
Hot Sale: patented technology, high productivity, environmental protection and energy saving
FAQ
Why do vertical‑mill rollers avoid direct contact with grinding table and grind via material bed?
Clinker vertical mill adopts material‑bed grinding principle. Hydraulic pressure acts on particle bed and inter‑particle compression realizes comminution, so roller metal components do not strike table directly. Material bed works as buffer to mitigate vibration and reduce metallic wear for longer service‑life of wear‑parts. Material‑layer thickness shall stay within reasonable range: too‑thin bed causes heavy vibration; too‑thick bed reduces grinding efficiency and raises power consumption. Operators adjust parameters according to motor current, vibration value and mill differential pressure.
What easily‑ignored process pitfalls exist for LM sand‑powder vertical mill selection in new sand‑powder projects?
Many buyers only refer to nameplate capacity and ignore output‑ratio influence; higher sand proportion reduces total throughput. Mixing‑up ordinary vertical mill and sand‑powder mill is another trap, as standard mill lacks bottom sand‑discharge s
What is the core structural logic for simultaneous sand‑powder output of LM sand‑powder vertical mill?
LM sand‑powder vertical mill adopts material‑bed roller‑press crushing. Lower scraper mechanism discharges coarse sand, while fine particles go through top classifier for powder collection. It produces manufactured sand and powder in one single mil
How does tramp release protection work when un‑crushable iron enters HPT cone crusher?
When iron or foreign objects enter crushing chamber, crushing load rises sharply. HPT multi‑cylinders quickly release pressure, moving the mantle downward to widen discharge gap and let foreign matter pass through. After discharge, hydraulic system aut
How to handle high bearing temperature in the Ball Mill?
High main-bearing temperature often comes from poor lubrication, dirty oil, low cooling water or overload. Check oil level/quality and cooling flow, clean filters, and reduce load if needed. Persistent high temperature requires shutdown to inspect shell
What limits does the TGM Super Pressure Trapezium Mill place on feed moisture and hardness?
The TGM Super Pressure Trapezium Mill requires feed Mohs hardness below 7 and moisture under 6%. Excess hardness accelerates roller and ring wear; too much moisture causes sticking, blockage and lower selection efficiency. Pre-dry after crushing to a sui
